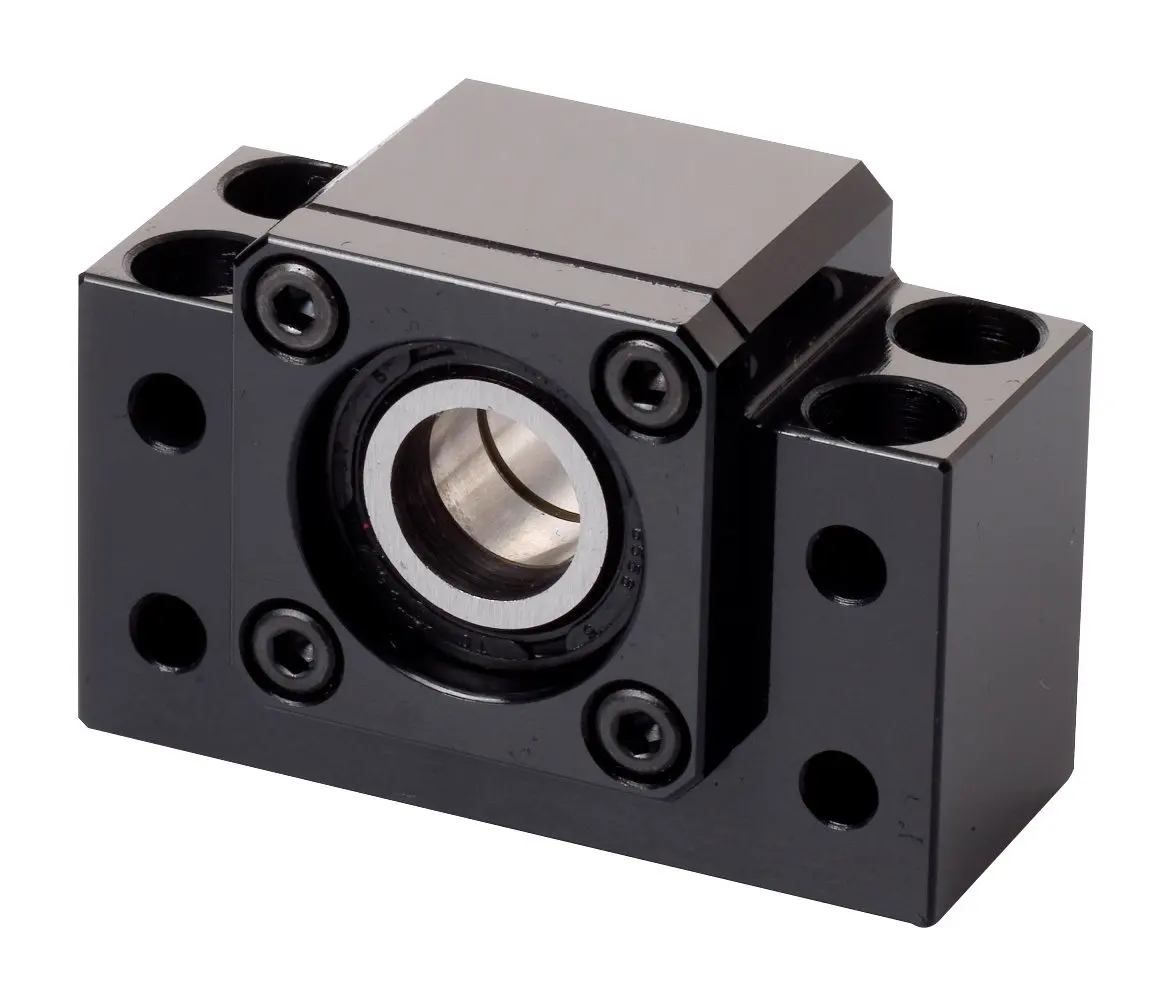

Reference part example

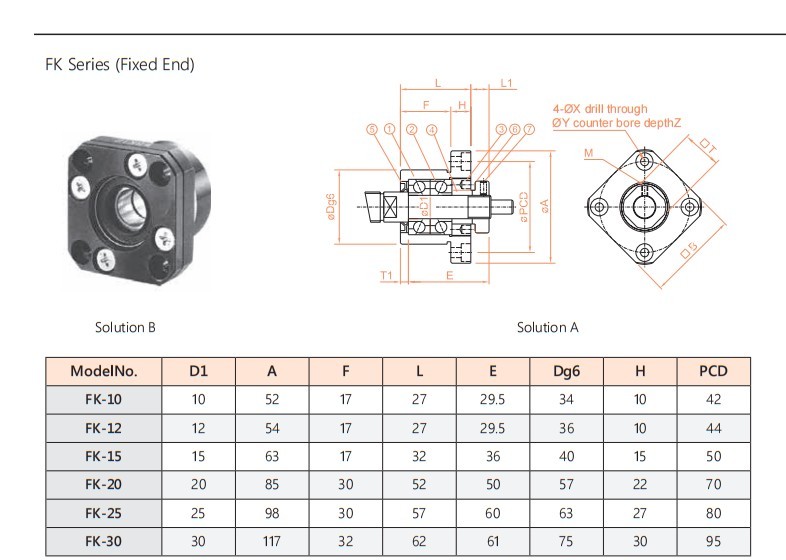

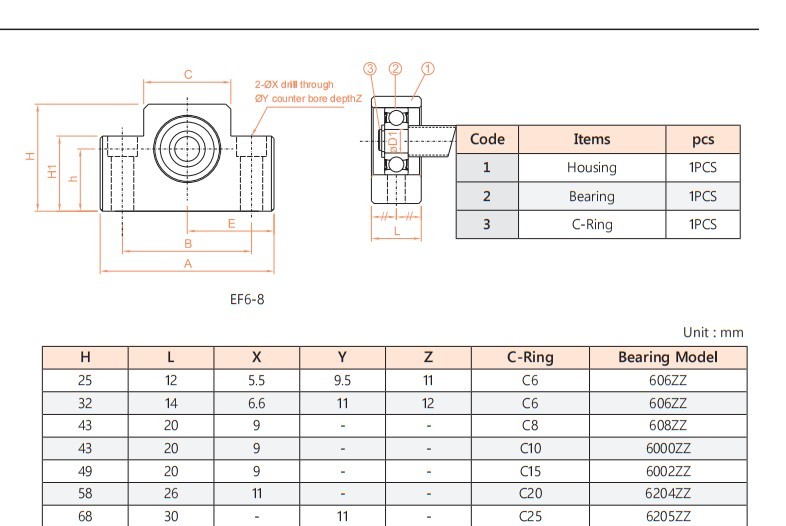

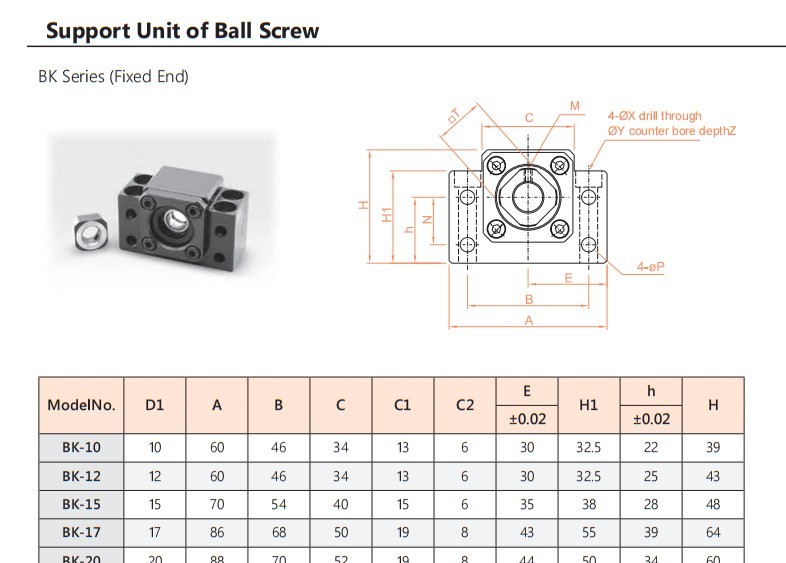

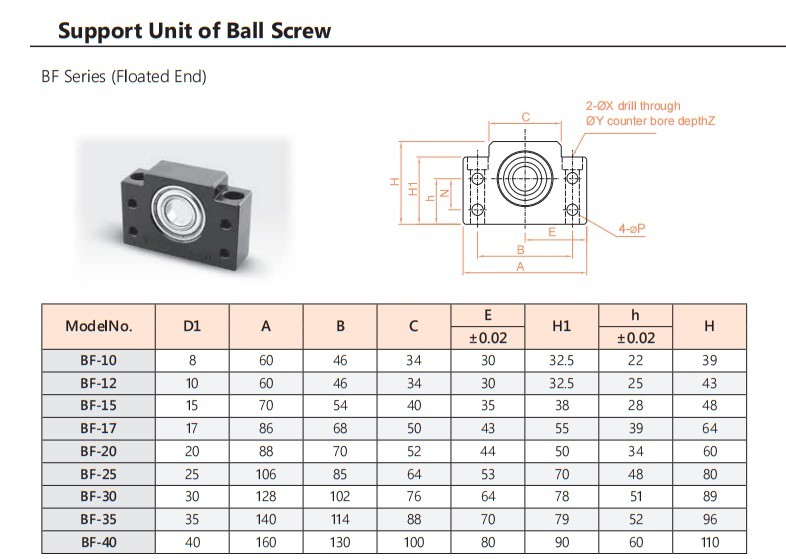

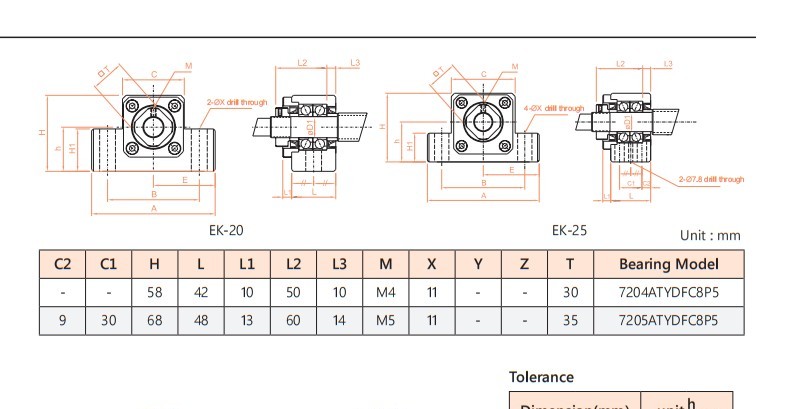

Support housings and bearing blocks.
Bearing support housings and matching components for screw ends, shafts, positioning structures and assembly stability.
Request a Quote
Typical applications
Screw-end and shaft support
Fixed-side and supported-side housings for automation equipment, CNC axes, sliding modules and mechanical positioning structures.
Reference parameters
What to provide
| Key data | Support model, ball-screw diameter, end-machining dimensions and mounting space |
|---|---|
| Processes | CNC milling, drilling, boring, tapping and bearing-fit review |

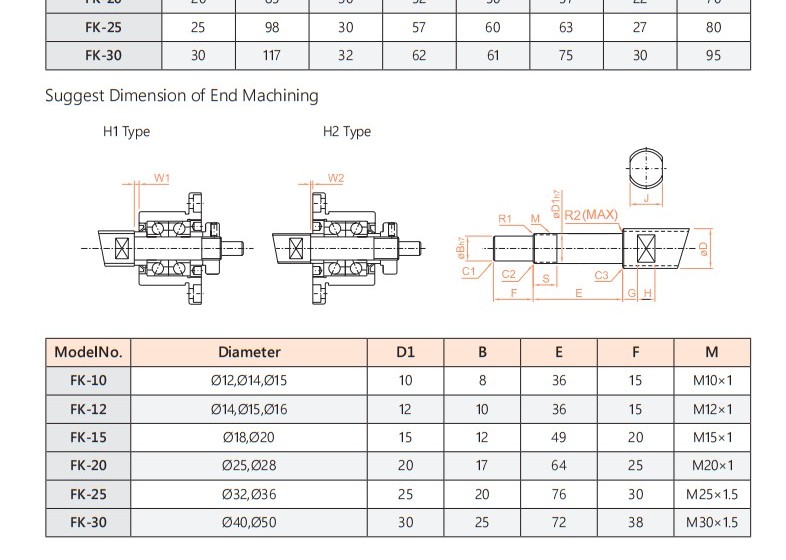

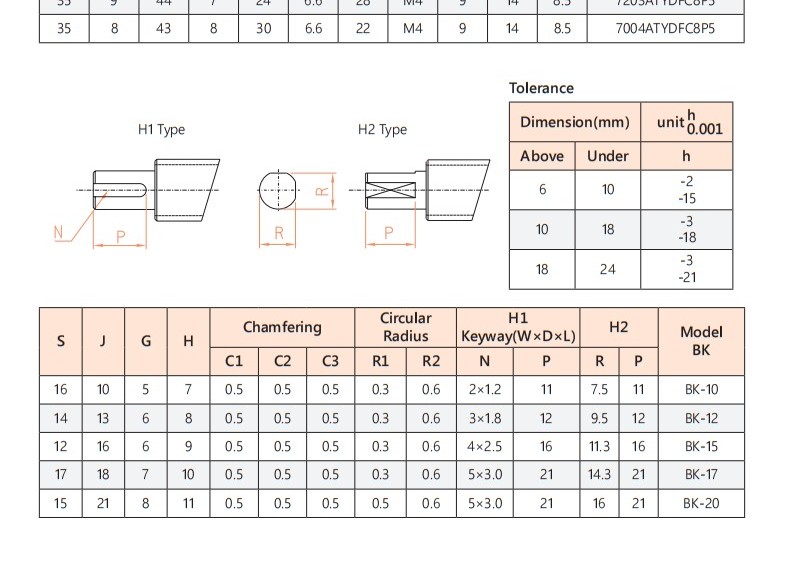

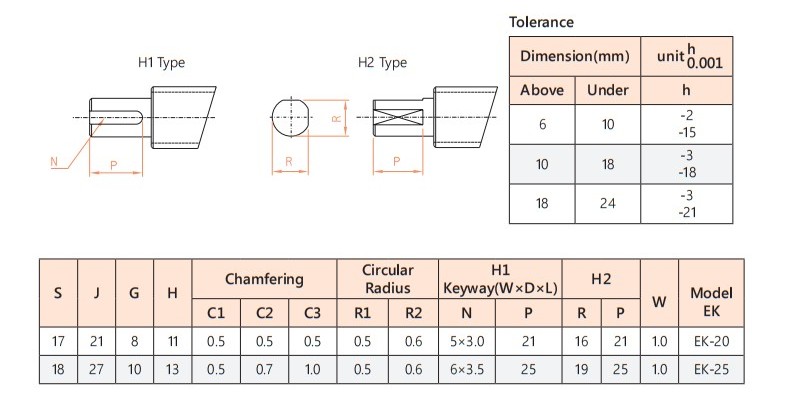

| Tolerance | Bearing bore, mounting pattern and screw-end fit reviewed by drawing |
| Finish | Machined finish, black oxide or specified finish |

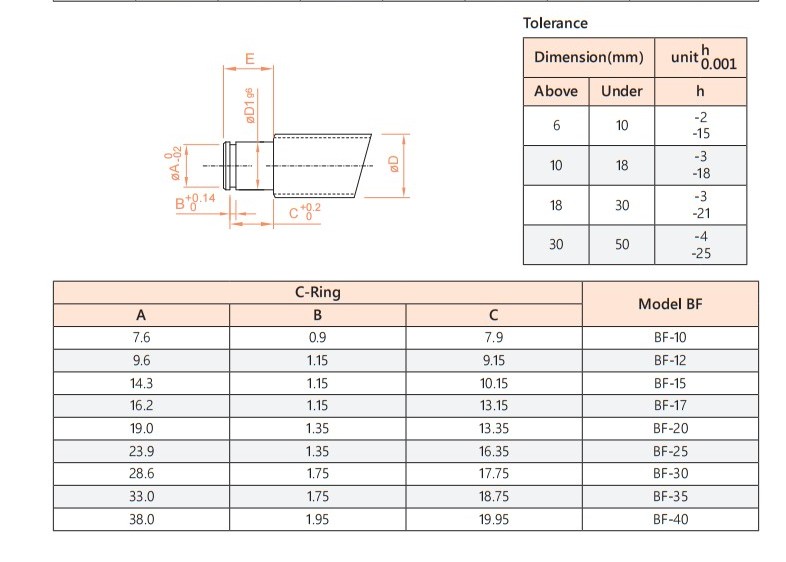

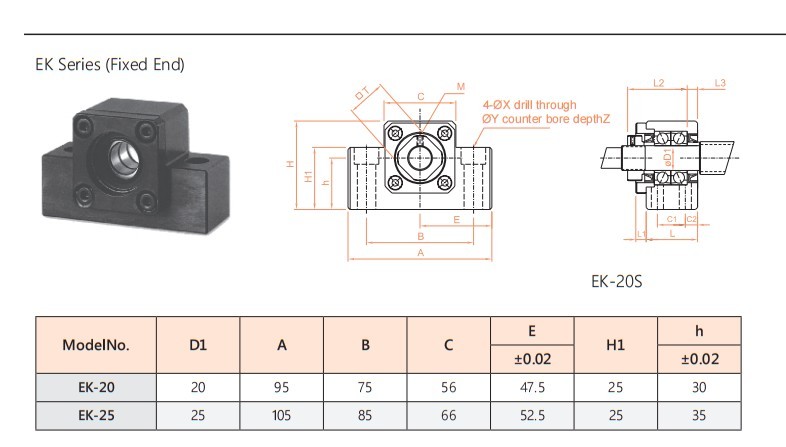

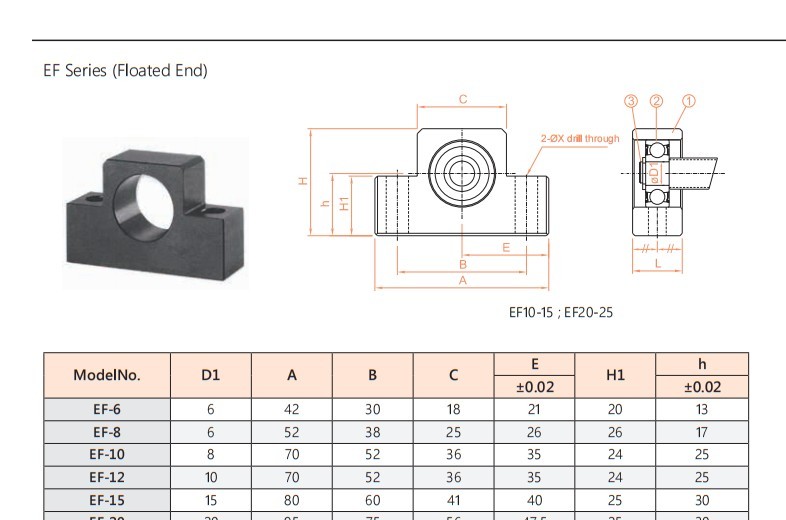

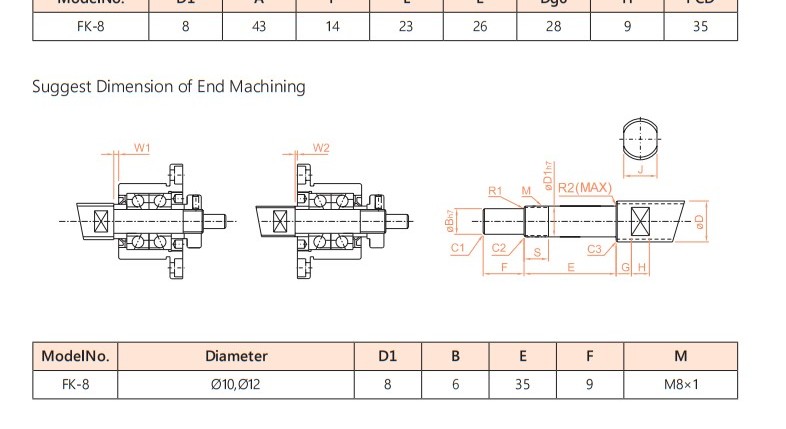

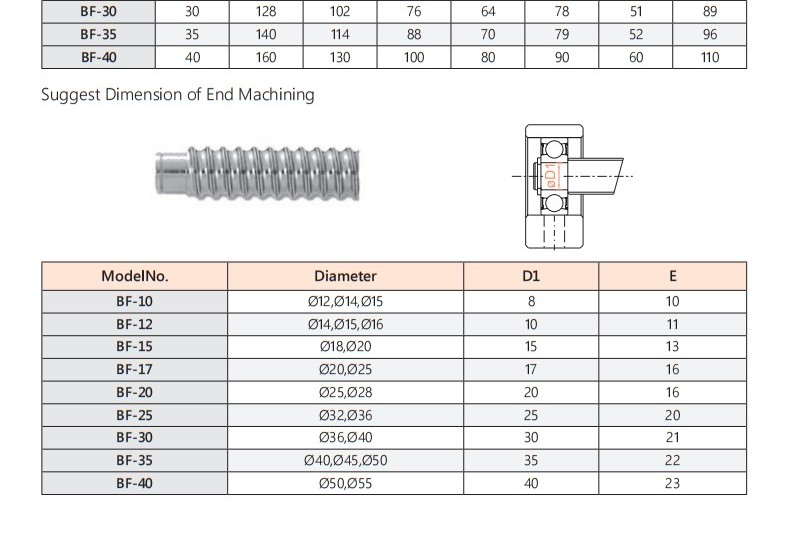

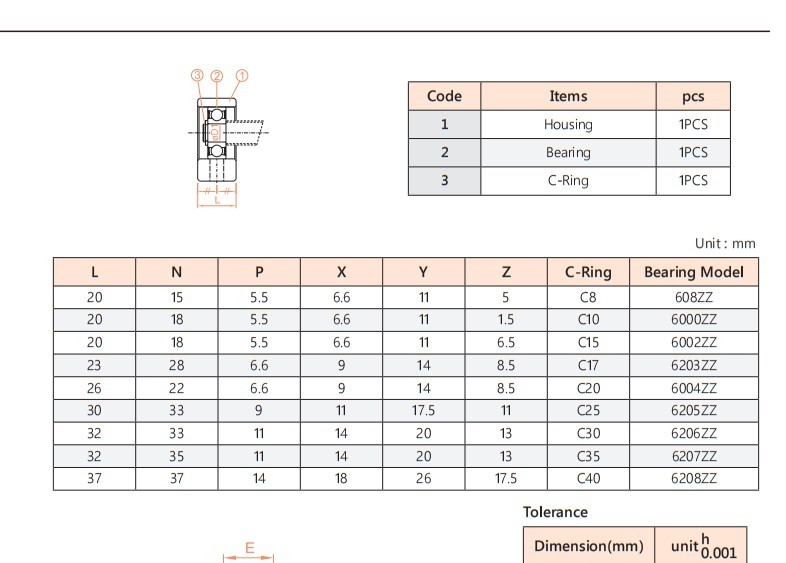

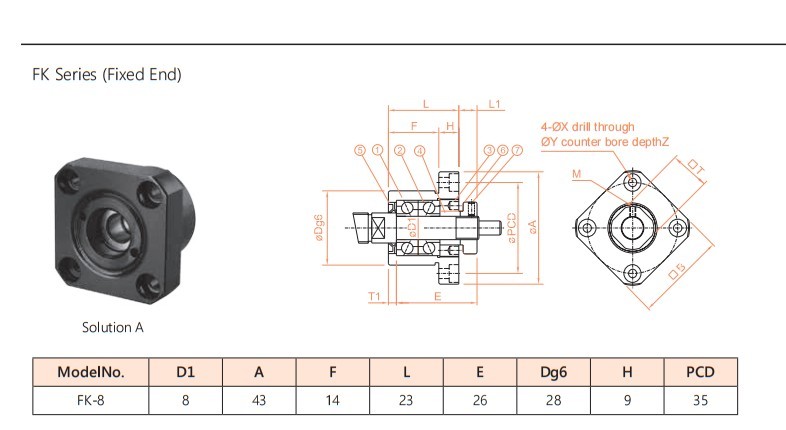

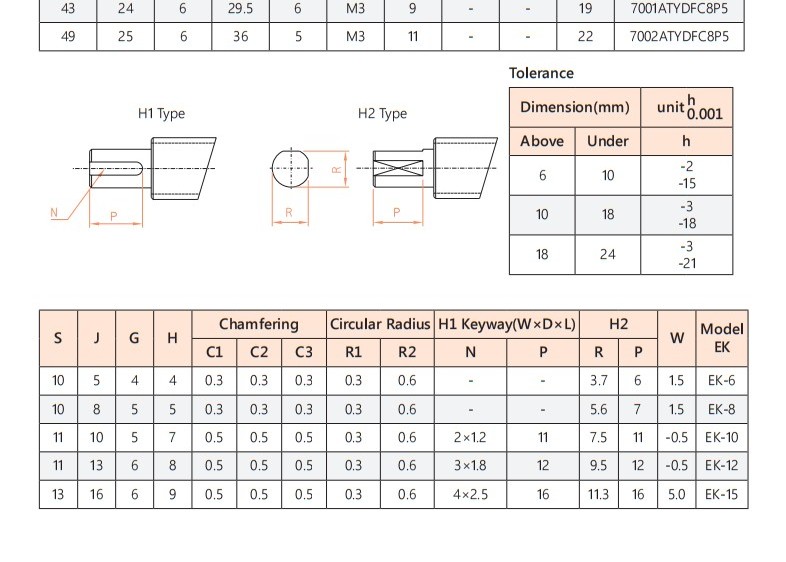

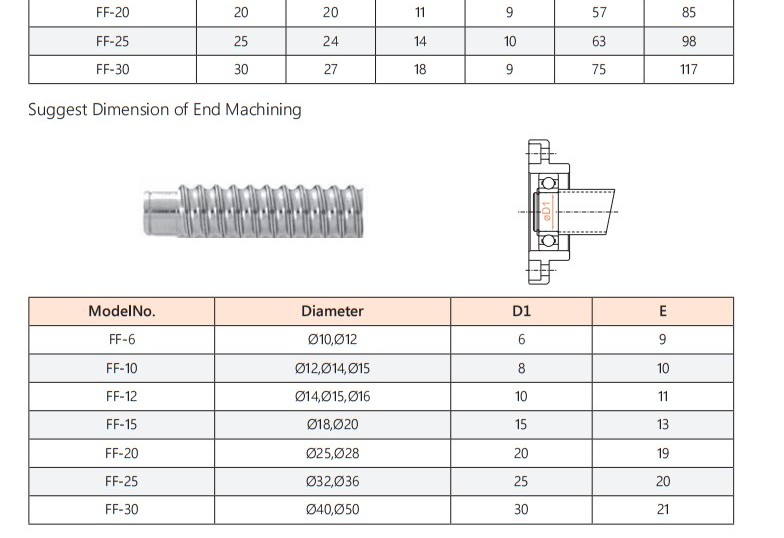

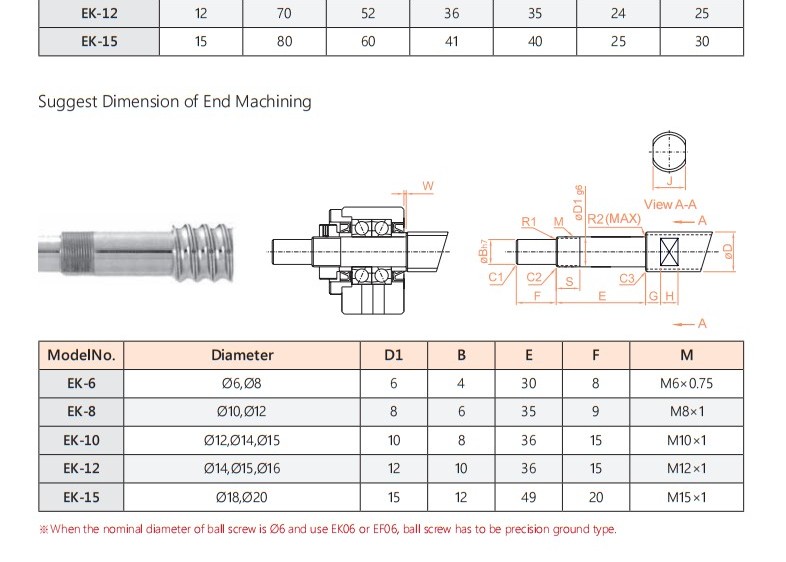

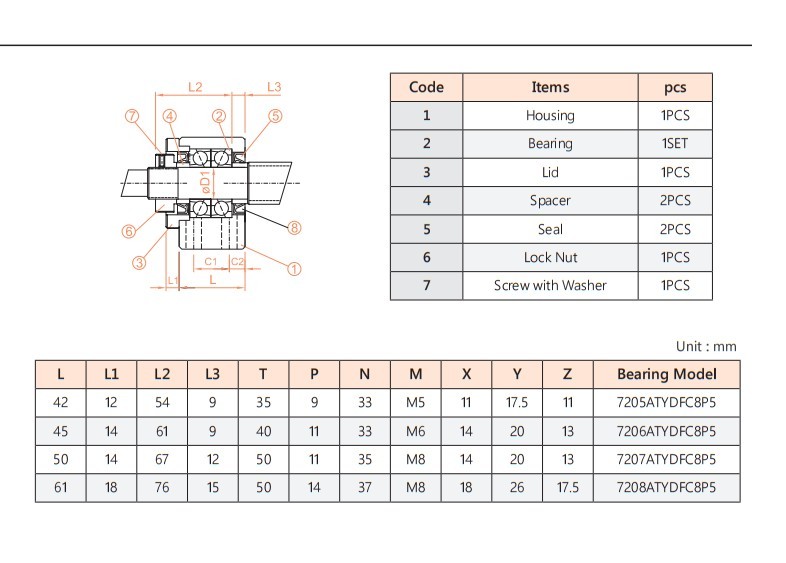

Drawing review
